The facilities of Alta Precisión del Mecanizado cover the area of 1,100 m2, and the Company owns the following machines:
MACHINING PROCESSES
VERTICAL MACHINING CENTER:
MORI SEIKI MV-653: Capacity: 352 hours/month
• CNC CONTROL: FANUC MSG-501
• TABLE SIZE: 1700x660
• TRAVEL: 1.530x660
• R.P.M.: 12000
• AXES: X Y Z A
MORI SEIKI MV-40: Capacity: 352 hours/month
• CNC CONTROL: FANUC 10M
• TABLE SIZE: 1100x450
• TRAVEL: 800x400
• R.P.M.: 8000
-
• AXES: X Y Z

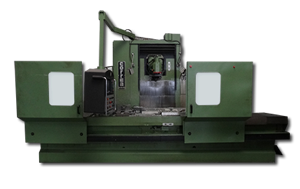

MILLING MACHINES:
NICOLAS CORREA A-25/25: Capacity: 352 hours/month
• CNC CONTROL: HEIDENHAIN
• TABLE SIZE: 2500x1000
• MAX. FEED RATE: 5.000 mm/min
• R.P.M.: 2500
• AXES: X Y Z
NICOLAS CORREA A-16: Capacity: 352 hours/month
• CNC CONTROL: HEIDENHAIN
• TABLE SIZE: 1100x450
• AVANCE MAX.: 8.000 mm/min
• R.P.M.: 5000
-
• AXES: X Y Z

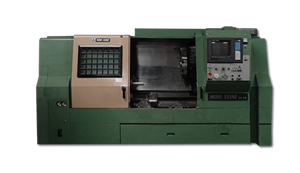

LATHE:
MORI SEIKI SL-25: Capacity: 352 hours/month
• CNC CONTROL: FANUC 15T
• TABLE SIZE: Ø350x1000 (up to ø420, according to length)
• TURRET: 10 tools.
• R.P.M.: 3000
-
• AXES: Y Z
LATHE CENTER:

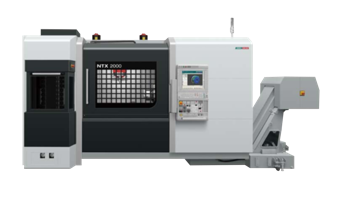

DMG MORI NTX-2000/1500SZ: Capacity: 352 hours/month
• CONTROL CNC: FANUC F31iB5
• TABLE SIZE: Ø610x1540
• TURRET: Torreta x10, Almacen x38
• Spindles: 5.000 rpm → Tool Spindle: 12.000 rpm
• AXES: X1 Y1 Z1 A B1 B2 (X2, Z2)
DRILLS:
IBARMIA Mod. B-70-P
ERLO SR-25 (Small Drills)
THREADING MACHINES:
CBS W36.COM (Up to M36)
(NO BRAND) (small threads: M2, M2.5, M3, M3.5, M4)
MATERIAL CUTTING
ALTERNATE CUT SAW UNIZ (ØMAX. 270mm)
MECHANICAL SAW ELVASA B-75 (PIPES AND PROFILES
ELECTRICAL DISCHARGE MACHINING (EDM) /
SURFACE TREATMENT

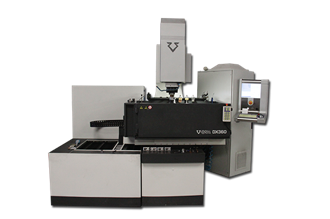

SINKER EDM:
ONA DX 360: Capacity: 500 hours/month
• CNC CONTROL: ONA NX (State-of-the-art)
• TANK/TABLE SIZE: 1200x800x400 / 650x400x520
• Change of electrode: YES (6)
• TRAVEL: 600x400
• ROUGHNESS: 0,1µ (0 VDI)
• AXES: X Y Z “C”
ABRASIVE MACHINING:
GER RS-1000:
• TABLE SIZE: 1000x500x350
• GRINDING TYPE: TANGENTIAL
HERLUCE:
• MODEL: HE-2
• MACHINE TYPE: GRINDER
DEFORMATION PROCESSING
ECCENTRIC PRESS:
GABA COMPE-30
• Force: 30 t
• Table: 560x310
• Height: 250
HOT HYDRAULIC PRESS:
SAEP EP-3
• Force: 600Kg/cm2 (10 Kg/cm2 )
• Plates: 350x350
• Height: 255
HYDRAULIC PRESS STANDING:
MEGA KP-30A
• Force: 30 t
• Operation: MANUAL
AUXILIARY MACHINES
WELDING MACHINES:
LASER 170 ELECTRODE
GALA MIG 260 WIRE
MILLER SYNCROWAVE 250DX TIG/MIG (tungsten electrode for CD or CA welding)
SAND BLASTING
